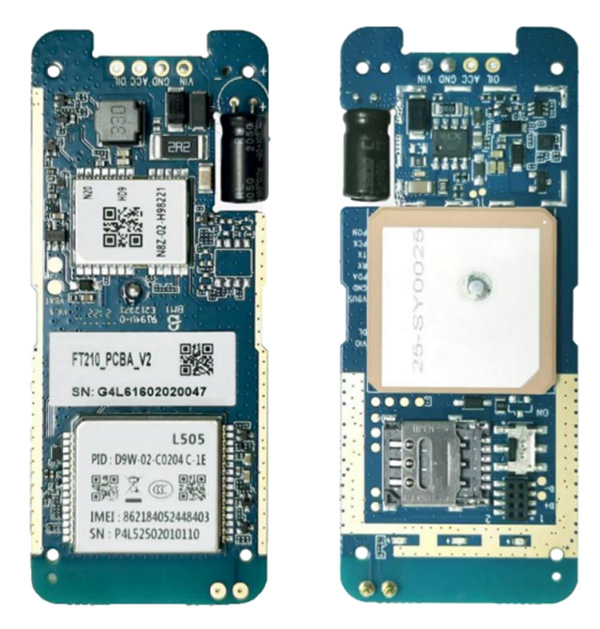

The FT210 is a compact LTE-CAT1 tracker PCBA with dual-mode GPS + BeiDou positioning. Designed for e-bikes, motorcycles, trailers, and similar vehicles, it features easy installation, a high-performance positioning module, and seamless integration with backend tracking systems. Supported functions include route playback, geofencing, low-battery alerts, tamper alerts, and overspeed warnings, making it ideal for vehicle tracking and asset monitoring.

Features
Nationwide LTE-CAT1 network support
Dual-mode GPS + BeiDou positioning
Built-in 3-axis accelerometer for vibration detection
Tamper and low-battery alerts
Rich protocol support: route playback, geofencing
Supports built-in backup lithium battery charging

4G Cat1 Specs
Bands: TDD B34/38/39/40/41; FDD B1/3/5/8
Data rate: DL 10Mbps / UL 5Mbps
Output power: 23±2dBm (conducted)

GNSS Performance
TTFF: Cold start 30s (typ.); hot start 1s (typ.)
Accuracy: Static CEP 3m; speed 0.1m/s
Sensitivity: Tracking -161dBm; reacquisition -156dBm; cold start -147dBm

Other
Power supply: 9–90V DC
ACC input: Ignition detection supported
Operating temperature: -20℃ to +70℃ (without battery)
Dimensions: TBD
